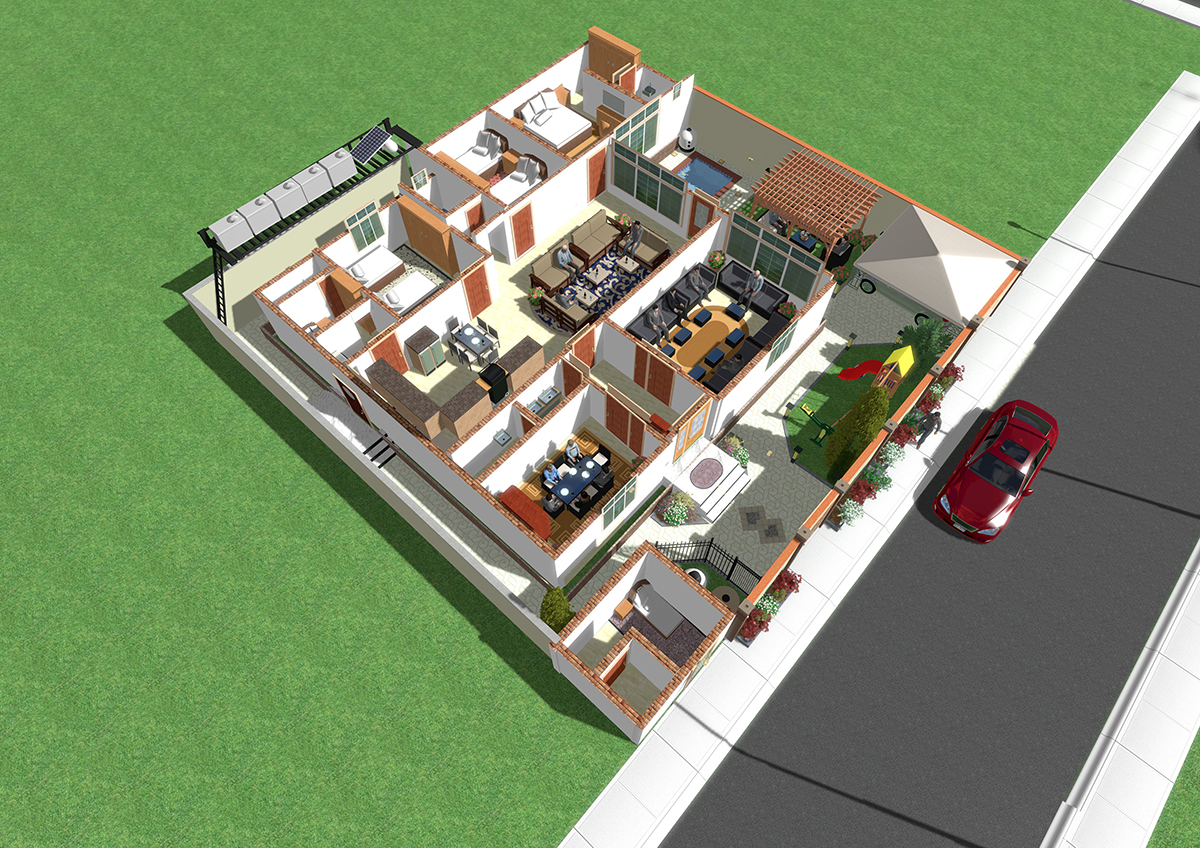

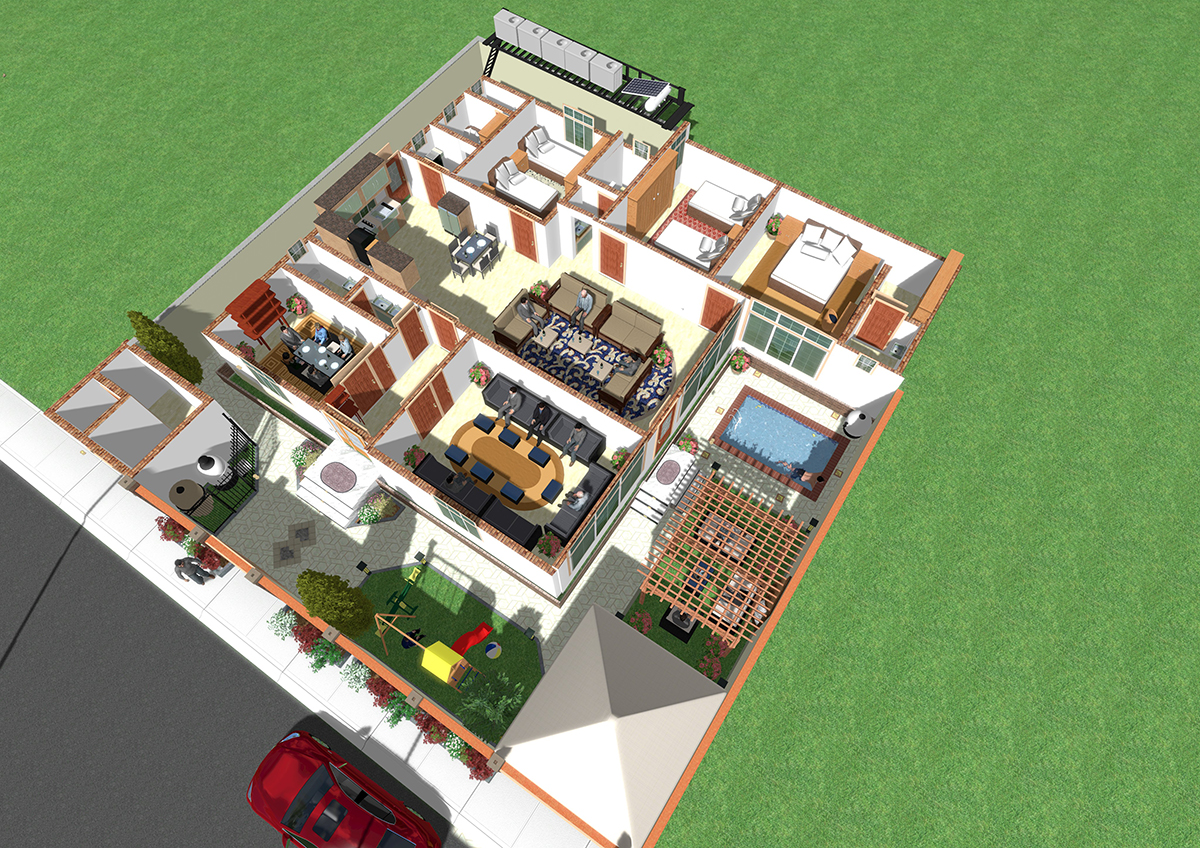

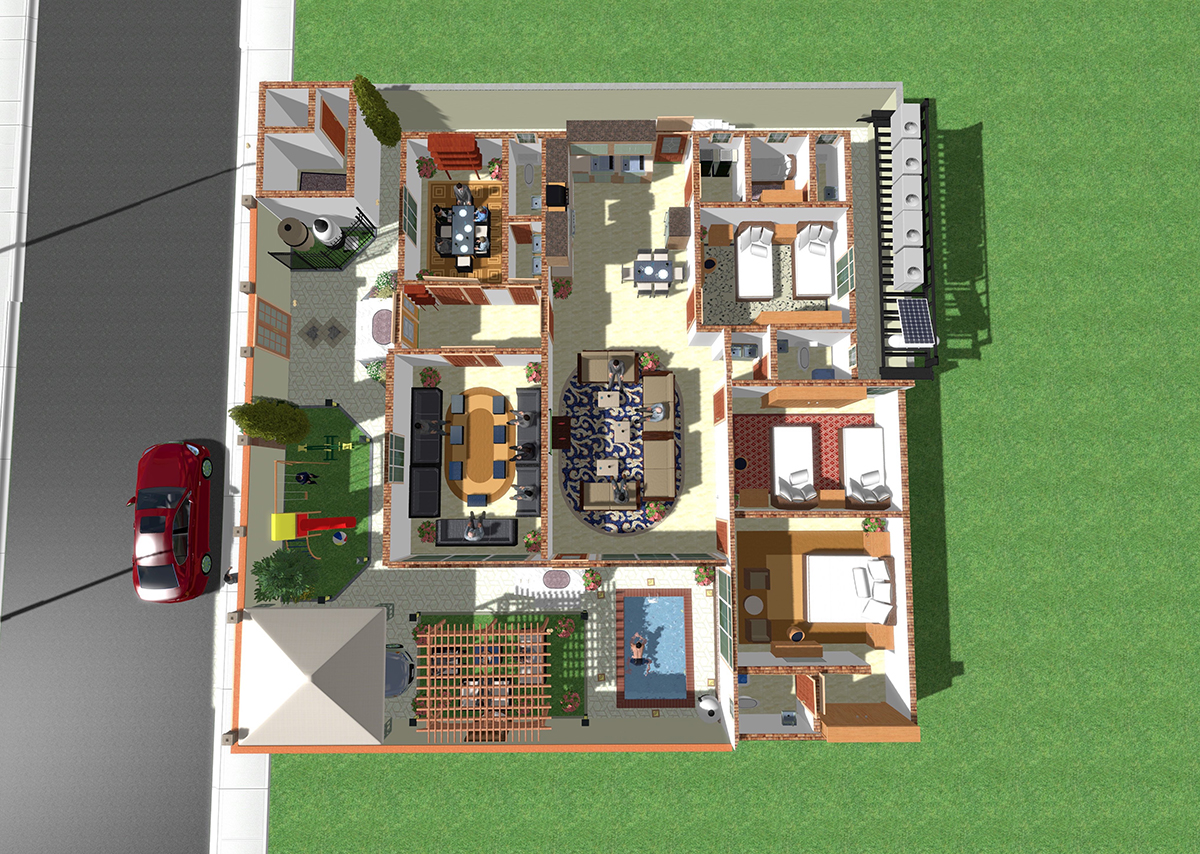

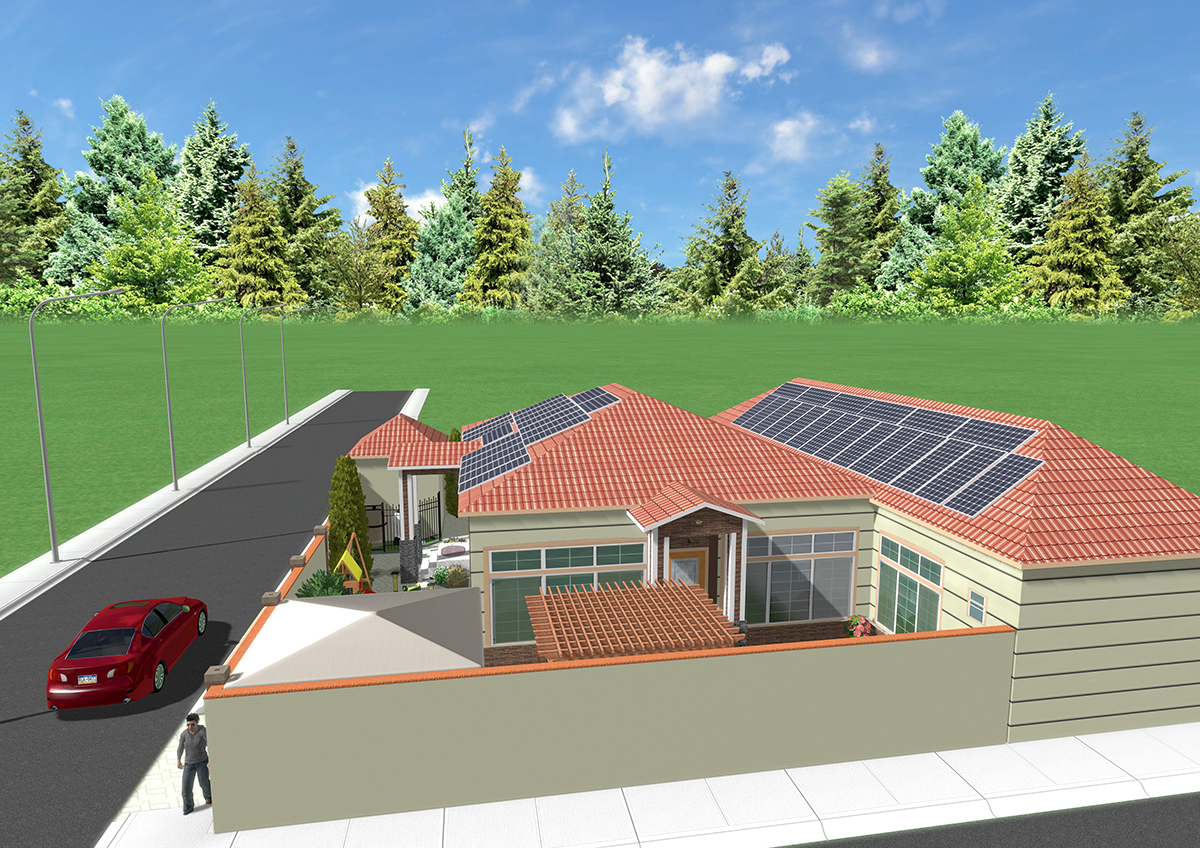

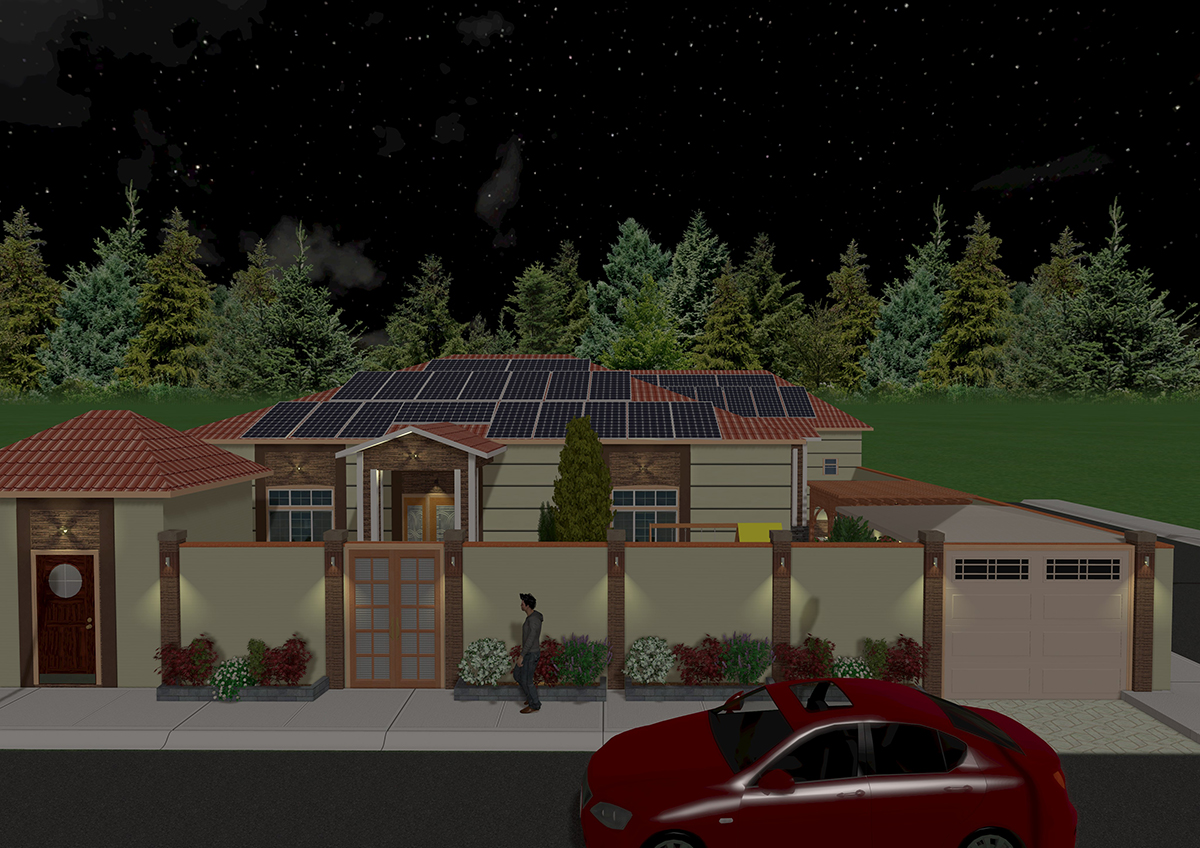

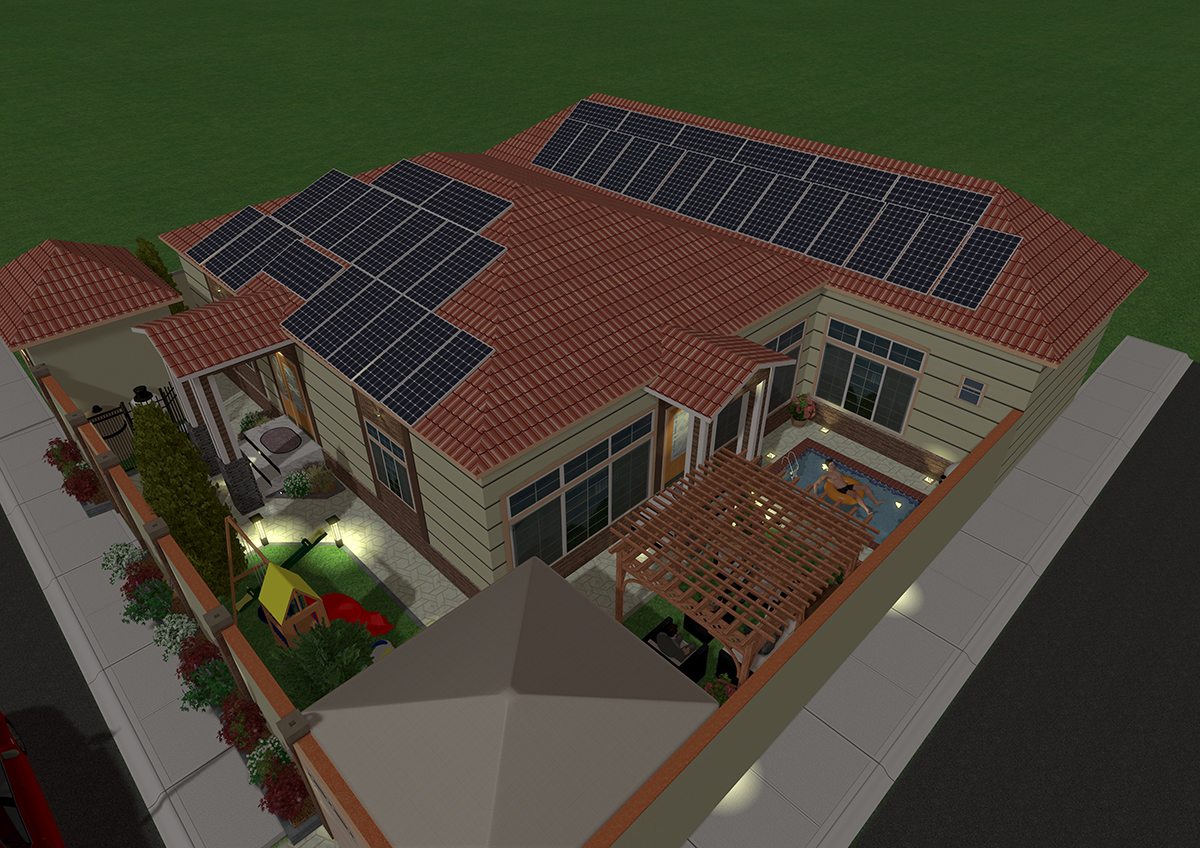

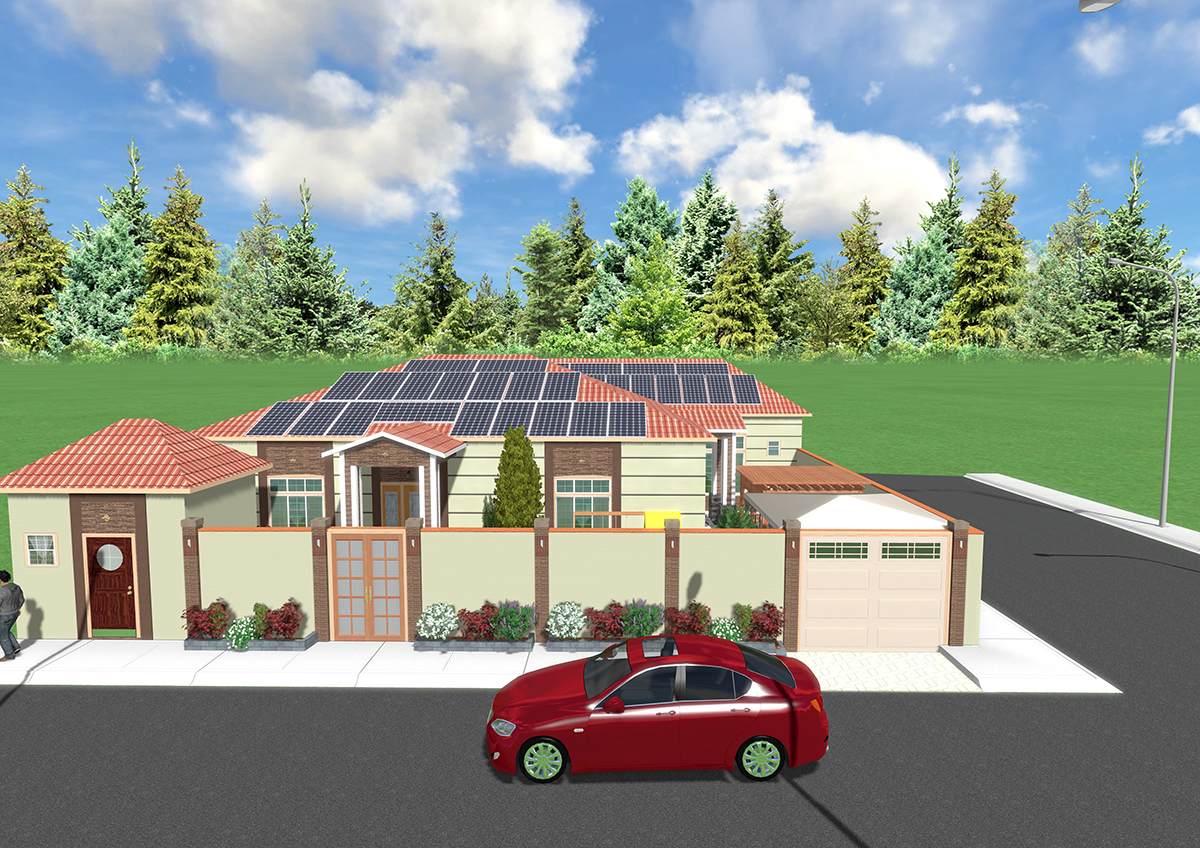

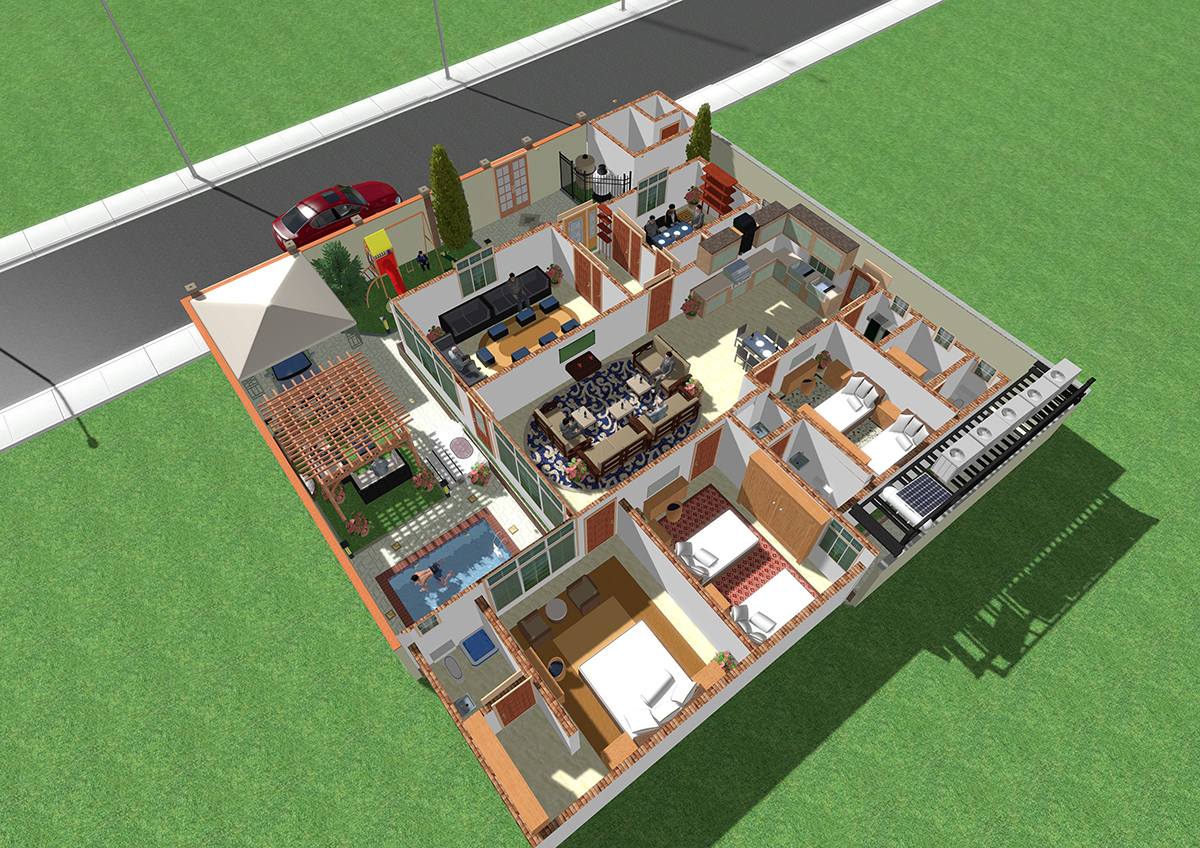

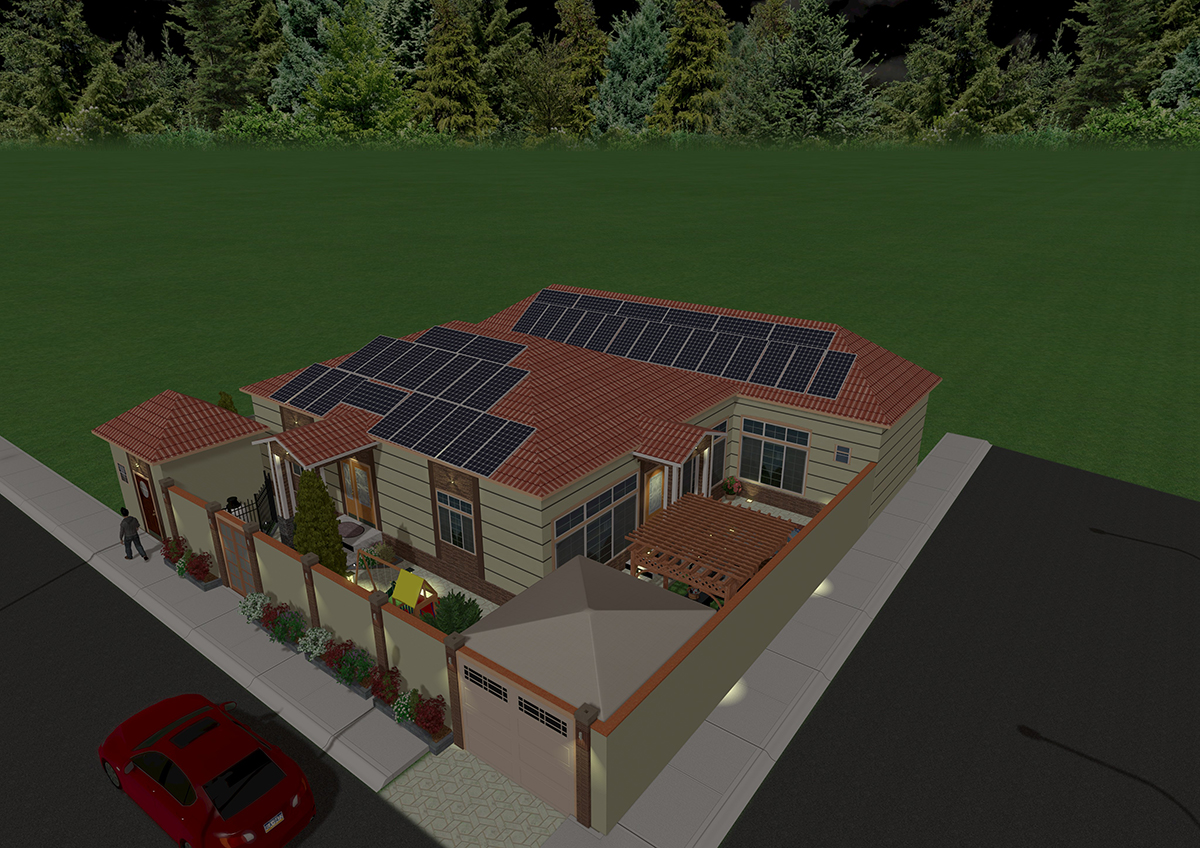

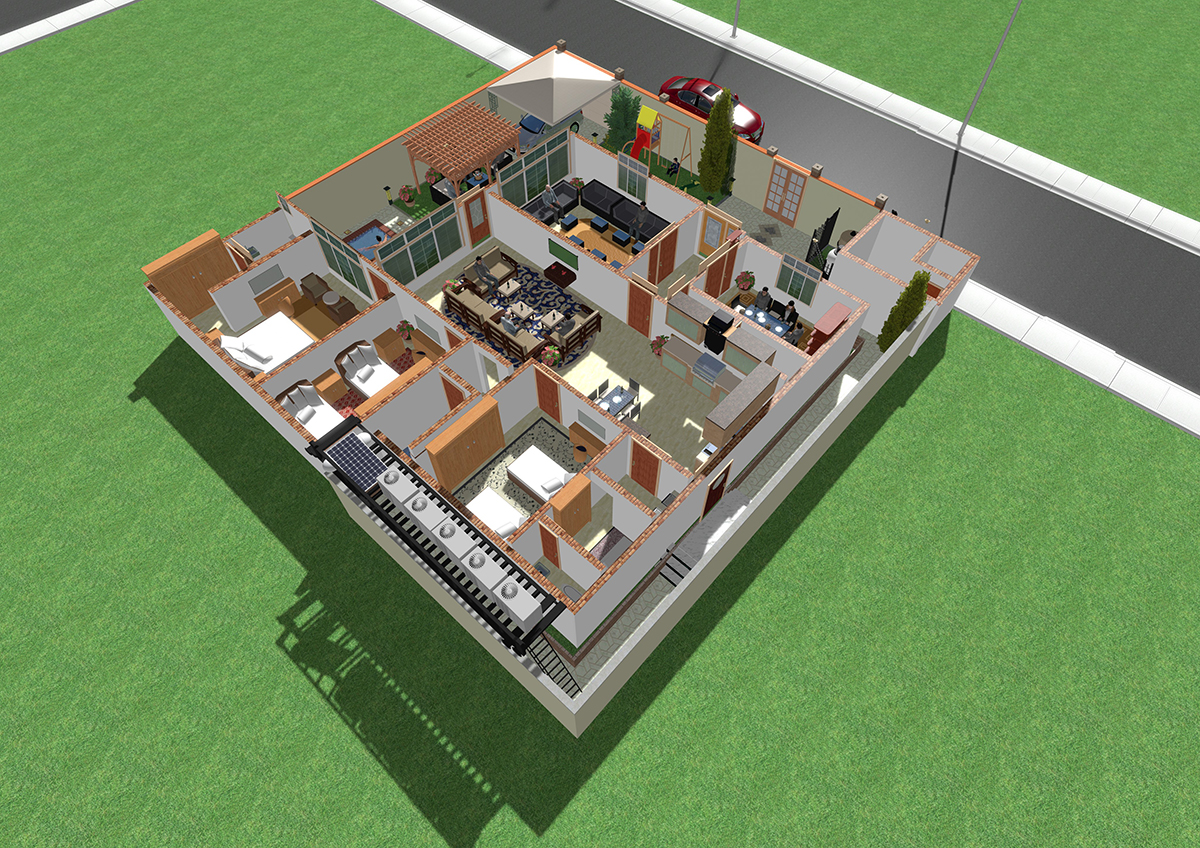

Economic Single Floor Model
Note: Land leveling & soil treatment is calculated at an additional cost depending on the nature of the project land. Currently, we are working only in Jeddah.
1. Suitable for a land area not less than 20m × 20m = 400m²
2. The total construction area is 250m²
3. Steel structural system painted with Epoxy for its corrosion-resistant features
4. Concrete foundation with strips (60cm x 20cm) on the area surface
5. Internal walls are made of galvanized steel structures 10mm thickness filled with thermal glass wool insulator 5cm thickness and covered each face with magnesium oxide boards 12mm thickness heat & soundproof
6. Exterior walls, made of white Siporex, thickness 15cm, which is heat insulated and soundproof, covered by a layer of ready-made Perlite insulation which is heat insulated and soundproof as well.
7. Outer roof, made of magnesium oxide sheets thickness 6mm with a thermal insulator of compressed blue Styrene 5cm thickness and coated with a waterproof acrylic material and covered with galvanized anti rust sheets
8. Water tank, made of reinforced concrete insulated from outside and painted with epoxy coating from inside, the capacity is 40m3
9. Drainage tank, made of concrete columns and block walls with holes for water leakage, tank capacity 15m3
10. The walls are made of concrete columns and blocks with a height of 3m, including the finishing, paint, and lighting. The exterior doors are made of fabricated steel and the car entrance gate is automatic roll made of galvanized sheets
11. Plumbing and drainage piping are made of Neproplast PVC pipes
12. Electrical wires, breakers, and switches are Eletra
13. LED indoor lighting and solar LED lightings for outdoors
14. Interior doors are made of WPVC moisture proof, insect and sound insulation
15. Main entrance doors are made of fabricated steel
16. Aluminum windows 1.5mm Double Saraya
17. Aluminum kitchen cabinets with national industrial marble (according to the design provided only)
18. Central solar heater 150 liter
19. Sanitary ware and bathrooms accessories are made by Saudi ceramics
20. German Taps
21. Indoor and outdoor flooring is ceramic made by Saudi Ceramics
22. The internal ceilings are made of magnesium oxide sheets with a thickness of 6mm with decorations in the corners 5cm
23. Interior paints from AlJazeera
24. Air conditioning pipes are American Mueller copper pipes
Note: These features are not included in the base price of this model and are added upon request by the customer
1. Siporex cell blocks with thermal insulation, sound and moisture proofing thickness 15cm
2. The indoor and outdoor finish is made by Perlite Thermal, sound, moisture proof, salts and rot proof
3. Water pipes by The Green PPR pipes, heat-insulated and thermally conductive
4. Stone decorative works for the front or the wall (calculated in square meters)
5. Gypsum interior decorations, hidden lights, and decorations (calculated by longitudinal meters)
6. Fiberglass swimming pool 2m × 4m including the appliances
7. The main entrance doors are made of galvanized stainless steel with top and side steel lock against theft and UPVC panels with distinctive wooden designs. The doors are water, sun and insects insulated.
8. UPVC windows with double glass treated against sunlight and heat insulated
9. Two-layer aluminum kitchen cabinets with American industrial marble (calculated by the longitudinal meter according to the client’s desire)
10. Car Shade (Umbrella)
11. Wooden garden umbrella
12. Garden decoration and landscaping
13. Solar Panel System
14. Solar cell air conditioning system
15. Greywater purification and recycling system
16. A smart home system with surveillance cameras
17. The car gate entrance is electric and made of American PVC with remote control
18. Installation of windows shutters with electric control
